| Product
| Description
| PCB Layout |
Ku LNA
113.8-14.7GHz
| 28dB gain Ku two stage LNA using the FHX017 pHEMT
|
32x20mm |
Dual Ku-band sat-Comm down converter
113.8-14.7GHz
| Dual, Skew matched down converters, IF BW 100MHz, 10dB conversion loss, input LO +7dBm
(Tested)
|
32x20mm |
| Cryogenic single-ended LNA
| LNA for the 1.8GHz Cellular band, based on ATF-54143 Low noise PHEMT on TMM10. Measured NF: 0.3dB @ 70K, Gain > 19dB
|  |
| Cryogenic balanced LNA
| LNA for the 1.8GHz Cellular band, balanced configuration of two ATF-54143 Low noise PHEMT on TMM10. Measured NF: 0.4dB @ 70K, Gain 14dB
|  |
| Wideband noise source PA DC-500MHz
| BW 100KHz - 500MHz High crest factor 6:1 peak to average, +20dBm output
(Tested)
|  |

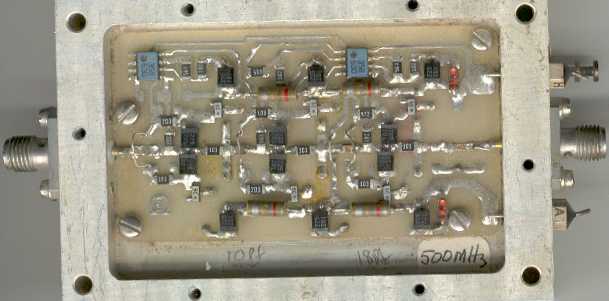

| 3W PA DC-500MHz
| High crest factor 6:1 peak to average, wideband duplexed design
(Tested)
|  |
| X-band doppler sensor
| Homodyne Oscillator and mixer with integrated antennas for transmit and receive
(Tested)
|  |
| S band doppler sensor
| Homodyne Oscillator and mixer with integrated antennas for transmit and receive
(Tested)
|  |
