Silicon IC Designs; RFIC

Note: This list does not include additional dies that were/are developed for specific customers under non-disclosure agreements which are in effect.

Product	Description	Block Diagram / Layout
SWDN EU1 Secure Wired Data Network	Integrated client node Tx 220MHz channel at 1.15GHz Tx 220MHz channel at 920MHz 4 User 48MHz channels Synthesized Carrier generation RF-CMOS 0.35um (Joint design with Focam Inc.)	1.8x2mm

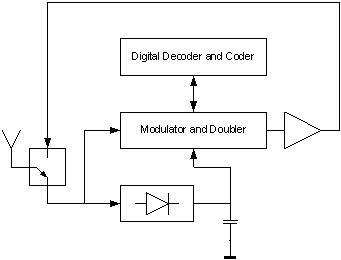

UIDT	User ID tag - Passive RFID VHF ISM band 433MHz field energizer and query Energy harvesting and power management Harmonic 0dBm transmitter with programmable coder Off-die antenna Synthesized Carrier generation RF-CMOS 0.35um	1.2x1.2mm
