Frequency Conversion Products
Note:
This list does not include additional products that were/are developed for specific customers under non-disclosure agreements which are in effect.
P/N
| Product
| Description
| PCB / Die Layout |
| N/A

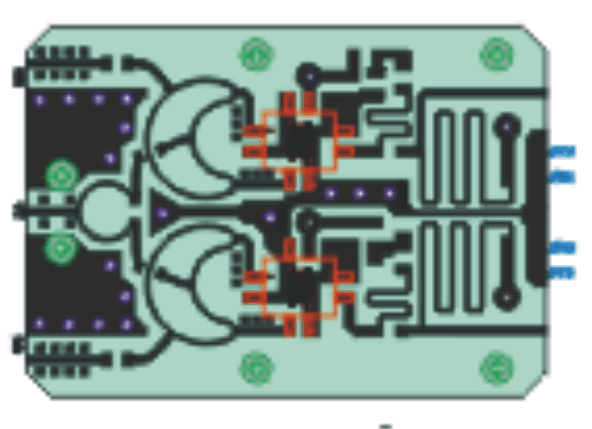

| Dual Ku-band sat-Comm down converter
113.8-14.7GHz
| Dual, Skew matched down converters, IF BW 100MHz, 10dB conversion loss, input LO +7dBm
(Tested)
|
32x20mm |
S-UDC0024Vxx
S-UDC0025Vxx

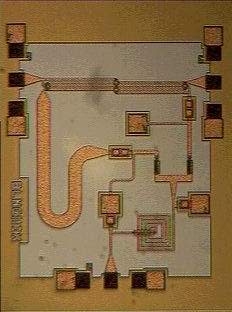

| Integrated wide band down converter
17-24.5GHz
| Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5GHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)
|
3.7x2.5mm |
S-UDC0018Vxx
S-UDC0019Vxx
| Integrated wide band up converter
17-24.5GHz
| Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5FHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)
|
3.7x2.5mm |
| S-UDC0028Vxx

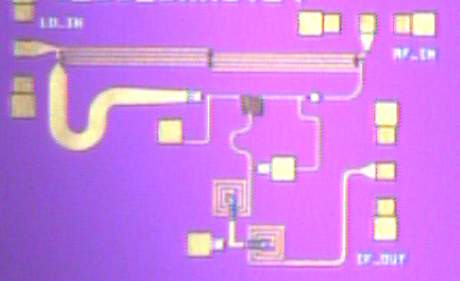

| Application specific integrated down converter
17.7-20.7GHz
| An image reject fundamental diode mixer, driven by an integrated frequency doubling LO driver chain. Conversion loss better than 11dB including hybrid coupler, LO input 8.4-9.9GHz @ +5dBm
(Tested)
4.5x2.6mm |
S-UC24-30
S-DC24-30

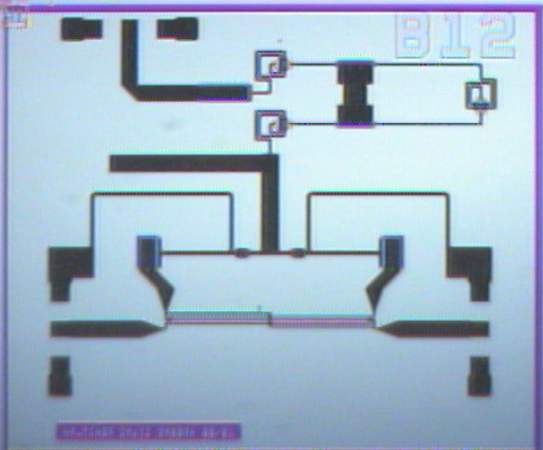

| Integrated wide band Up / Down Converter
24.5-30GHz
| A balance fundamental diode mixer driven by a frequency tripling LO chain. IF 0.9-3GHz RF 24.5-30GHz, LO 7.8-9GHz @ 0dBm, conversion loss 10dB. The integrated LNA has typical 4dB noise figure and 30dB gain.
(Tested)
|
4.5x2.4mm |
| N/A

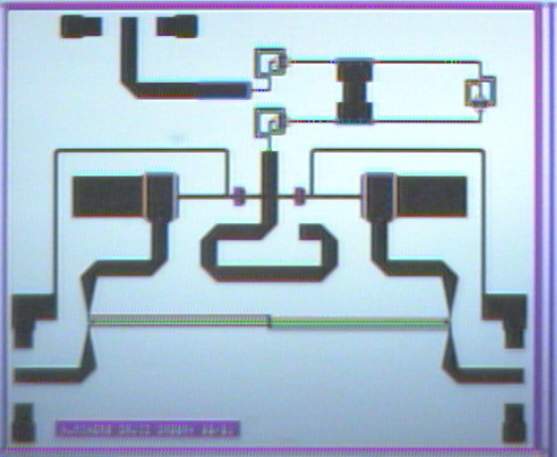

| X band mixer
| Conversion loss <10dB, RF 8-12GHz, IF LPF @ 5GHz
(Tested)
|
1.7x0.9mm |
| N/A
| Ku band mixer
| Conversion loss <10dB, RF 14-18GHz, IF LPF @5GHz
(Tested)
|
1.5x0.9mm |
S-UDC0034Vxx
S-UDC0035Vxx
| K band mixer
| Balanced diode mixer, 10dB conversion loss, Up / Down converter, RF 17-24.5GHz IF 0.9-2.2GHz, Integrated IF LPF
(Tested)
|
1.2x1.9mm |
| N/A
| Ka band mixer
| Balanced diode mixer, 10dB conversion loss, Up / Down converter, RF 24.5-30GHz IF 0.9-2.2GHz, Integrated IF LPF
(Tested)
|
1.5x1.5mm |
| N/A
| IRM 17.7-20.7GHz
| Conversion loss < 11dB with hybrid coupler, RF 17.7-20.7GHz, IF 0.9-3GHz
(Tested)
|
2.2x1.5mm |
| N/A

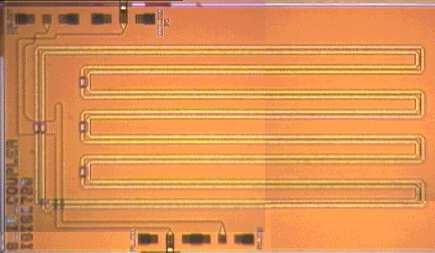

| S-IF coupler
| Monolithic IF quad coupler, 0.9-1.5GHz, Insertion loss ~4dB, phase match better than 2deg, 15dB typical return loss
(Tested)
|
4.5x2.4mm |
| |
Note:
This list does not include additional products that were/are developed for specific customers under non-disclosure agreements which are in effect.
|
