GaAs Monolithic Designs; MMIC

Note:
This list does not include additional dies that were/are developed for specific customers under non-disclosure agreements which are in effect.

P/N
Product
Description

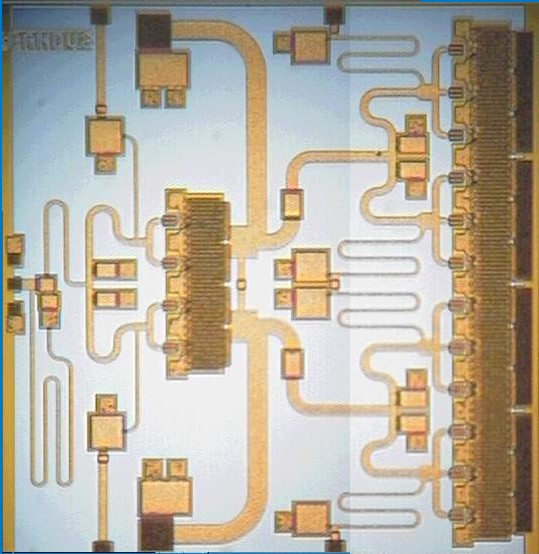

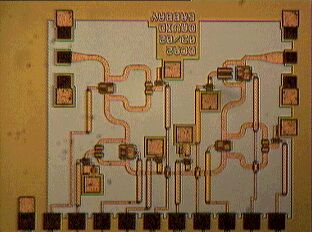

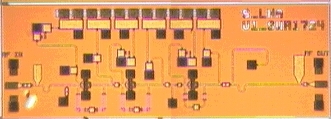

Die Layout
S-UDC0024Vxx
S-UDC0025Vxx
Integrated wide band down converter
17-24.5GHz
Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5GHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)

3.7x2.5mm
S-UDC0018Vxx
S-UDC0019Vxx
Integrated wide band up converter
17-24.5GHz
Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5FHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)

3.7x2.5mm
S-UDC0028Vxx
Application specific integrated down converter
17.7-20.7GHz
An image reject fundamental diode mixer, driven by an integrated frequency doubling LO driver chain. Conversion loss better than 11dB including hybrid coupler, LO input 8.4-9.9GHz @ +5dBm
(Tested)

4.5x2.6mm
S-UC24-30
S-DC24-30
Integrated wide band Up / Down Converter
24.5-30GHz
A balance fundamental diode mixer driven by a frequency tripling LO chain. IF 0.9-3GHz RF 24.5-30GHz, LO 7.8-9GHz @ 0dBm, conversion loss 10dB. The integrated LNA has typical 4dB noise figure and 30dB gain.

(Tested)

4.5x2.4mm
S-LNA0036Vxx
3 stage LNA 17-24.5GHz
3 stage LNA, 0.25 m devices, gain > 24dB, NF < 4dB, RF frequency 17-24.5GHz, 10dB, return loss.
(Tested)

3.5x1.3mm
S-LNA0030Vxx
3 stage LNA 17.7-20.7GHz
3 stage LNA, 0.25 m devices, gain > 24dB, NF < 3.5dB, RF frequency 17.7-20.7GHz, 10dB return loss
(Tested)

3.5x1.3mm

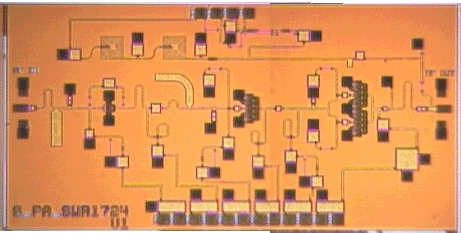

S-PWR0037Vxx
Power amp 22dBm 17-24.5GHz with BIT power detector
3 stage Power amplifier. 2x0.5mm 0.25 m output cells, +22dBm output power @1dBc, RF frequency 17-24.5GHz, 16dB small signal gain typical 10dB return loss. Power detector produces 100mV DC when output power is greater than 10dBm.
(Tested)

3.3x2.1mm
S-PWR1001Vxx
Power amplifier 24.5-30GHz 20dBm with BIT detector
3 stage Power amplifier. 2x0.5mm 0.25 m output cells, +20dBm output power @1dBc, RF frequency 24.5-30Hz, 13dB small signal gain typical 10dB return loss. Power detector produces 100mV DC when output power is greater than 10dBm
(Tested)

3.3x2.1mm

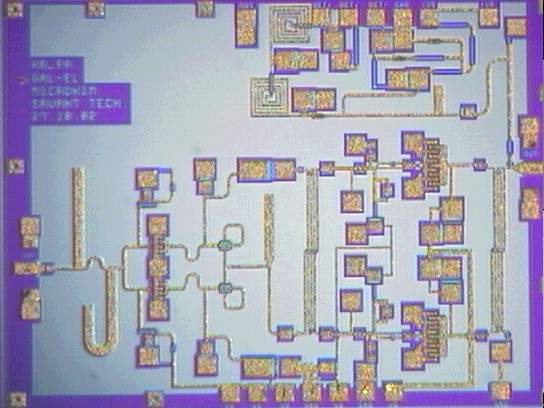

S-PA24-30
Balanced power amplifier 18dBm, 24-30GHz with BIT detector
RF 24-30GHz, 18dBm output power, 2x0.5mm cells in a balanced configuration, 15dB output return loss
(Tested)

3.1x2.4mm
N/A S band Power Amplifier
S band, 20W output power, 27dB gain
(Tested)

2.5x3.3mm

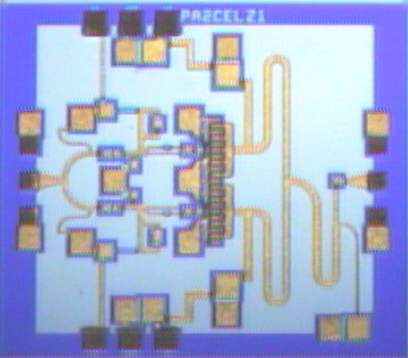

N/A X band power amplifier
2Stage, 2x600 m cell, X band, 32dBm output power, 18dB gain
(Tested)

2.2x2mm
N/A
X band Multi-function chip
T/R switching, buffers, LNA, 6bit attenuator, 6bit phase shifter, TTL control inputs
(Tested)

5.7x3.7mm
N/A
X band Multi-function chip
T/R switching, buffers, LNA, 6bit attenuator, 6bit phase shifter LNA and Tx driver
(Tested)

5.7x3.4mm

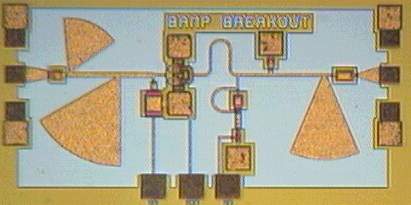

S-AMP1001Vxx

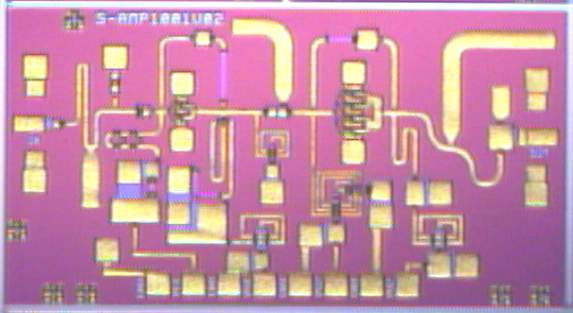

2 stage mid power driver
RF 15-28GHz, 19dBm output power @1dBc, 10dB return loss, 15dB SSG
(Tested)

2.4x1.3mm
S-AMP0026Vxx
C band buffer
RF 5-10GHz, 10dB gain 10dB typical return loss
(Tested)

0.9x0.9mm
N/A Single stage amplifier
RF 23-30GHz, gain 12dB
(Tested)

1.7x1.1mm
S-PWR0041V11

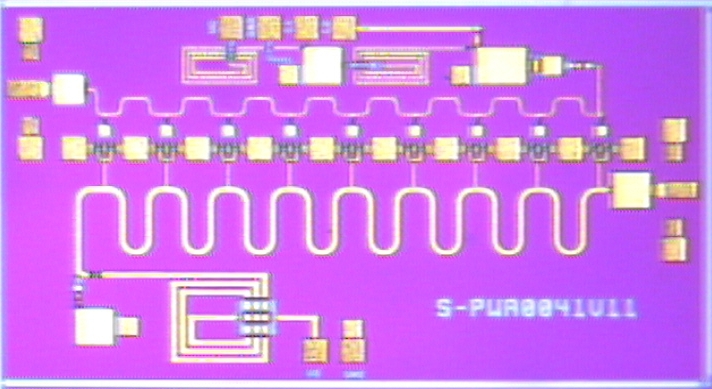

Traveling wave amplifier
DC-20GHz, gain 10dB, 12dB match
(Tested)

2.5x1.5mm
S-GTA0017Vxx

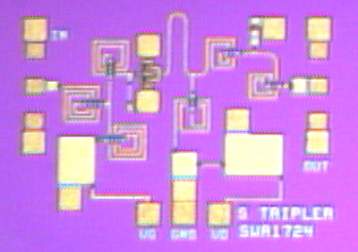

Frequency Tripler
Input 5-9GHz, conversion loss better than 8dB, 10dB return loss
(Tested)

1.1x0.9mm
S-GTA0027Vxx

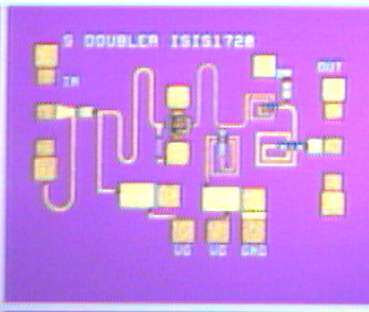

Frequency Doubler
Input 8.4-9.9GHz,5dB conversion loss
(Tested)

1.1x0.9mm
N/A X band mixer
Conversion loss <10dB, RF 8-12GHz, IF LPF @ 5GHz
(Tested)

1.7x0.9mm
N/A Ku band mixer
Conversion loss <10dB, RF 14-18GHz, IF LPF @5GHz
(Tested)

1.5x0.9mm
S-UDC0034Vxx
S-UDC0035Vxx
K band mixer
Balanced diode mixer, 10dB conversion loss, Up / Down converter, RF 17-24.5GHz IF 0.9-2.2GHz, Integrated IF LPF
(Tested)

1.2x1.9mm
N/A Ka band mixer
Balanced diode mixer, 10dB conversion loss, Up / Down converter, RF 24.5-30GHz IF 0.9-2.2GHz, Integrated IF LPF
(Tested)

1.5x1.5mm
N/A IRM 17.7-20.7GHz
Conversion loss < 11dB with hybrid coupler, RF 17.7-20.7GHz, IF 0.9-3GHz
(Tested)

2.2x1.5mm
N/A 6 bit phase shifter
6 bit, S band
(Preliminary)

1.8x1.9mm
N/A Ka Doppler sensor transmitter with integrated antenna
VCO30 - 32 GHz 10dBm, AM, FM modulation
(Tested)

2.2x1.6mm

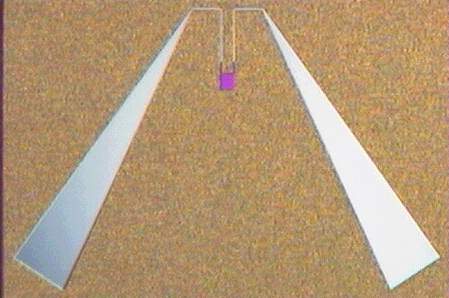

N/A Ka ant
On chip, ~50deg EL, 60deg Az, 25GHz, 7% BW
(Tested)

2.2x1.6mm
N/A DC-16GHz 5.5 bit Digital Attenuator
6 bit, DC - 16GHz, IL 2.7dB, 0.5, 1, 2, 4, 8, 8 dB bits
(Tested)

1.4x1.6mm
N/A X-band 6 bit Digital Phase Shifter
6 bit, X-band digital phase shifter, 5.6deg LSB, monotonic
(Tested)

1.4x1.6mm
N/A S-IF coupler
Monolithic IF quad coupler, 0.9-1.5GHz, Insertion loss ~4dB, phase match better than 2deg, 15dB typical return loss
(Tested)

4.5x2.4mm

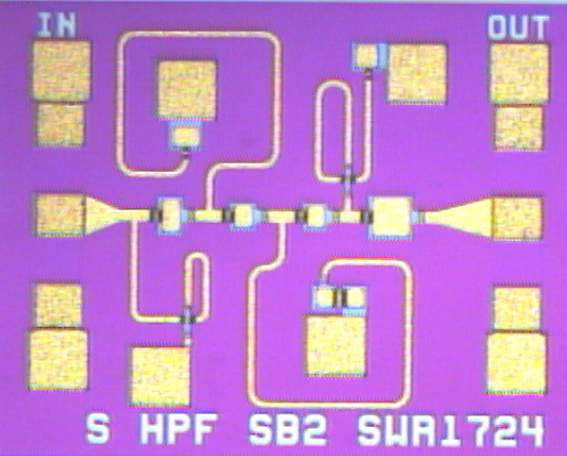

N/A HPF
HPF cutoff at 15GHz, pass band insertion loss < 2dB, stop band insertion loss > 20dB, return loss 10dB
(Tested)

0.9x0.9mm

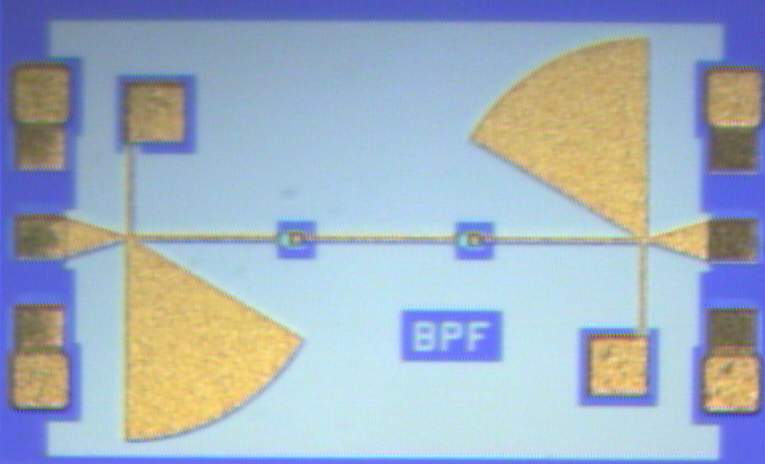

BPF
Pass band 20 -30GHz, Pass band insertion loss 2dB, Stop band insertion loss >10dB, Return loss >10dB
(Tested)

1.2x0.7mm
S#GTA46V11

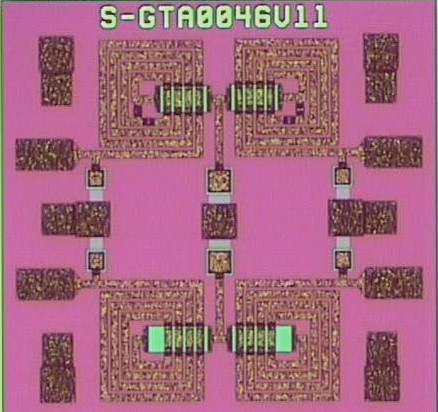

LPF
5 versions of Bessel like LPF
Cut off frequencies : 2.55GHz, 2.7GHz 2.85GHz, 3GHz and 3.15GHz, better than 15dB match, Group delay < 3pSec up to 4GHz
(Tested)

1.1x0.7mm
S#GTA47V01

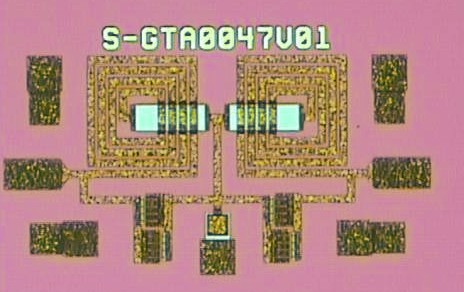

Signal Shaper
This custom made device incorporates diodes into an LPF in order to specially shape a signal prior to the Electro-Optic modulator driver

1.1x0.7mm
N/A

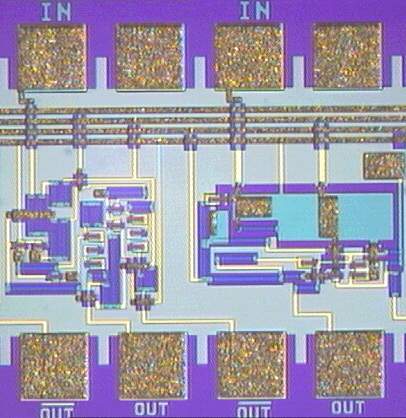

Digital level translator / inverter
Translates TTL input logic levels to switch FET control levels:
0V / -2Vp
(tested)

0.5x0.7mm /each
N/A
Wideband Detector
X-Ka broadband detector Balanced, temperature compensated with optional bias
(tested)

3.5x1mm
N/A

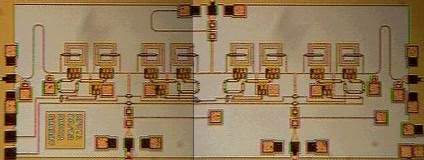

X-band Transfer switch DPDTx2
X-band high isolation. 1GHz BW transfer switch
(tested)

3.5x1mm
N/A

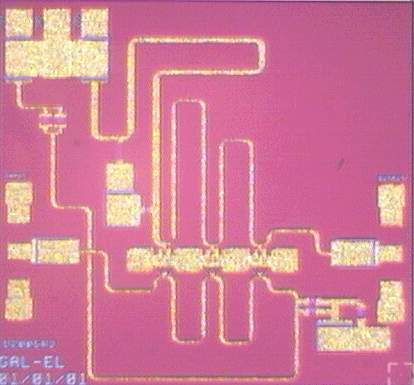

Distributed Amplifier
BW 100MHz to 18GHz, 12dB gain, 14dBm p1dBc, RL in/out < -12dB, 1dB flatness, low current version (78mA @ 3.5V)
(tested)

1.9x1.7mm

Note:
This list does not include additional dies that were/are developed for specific customers under non-disclosure agreements which are in effect.
