P/N
| Product
| Description
| PCB / Die Layout |
| N/A

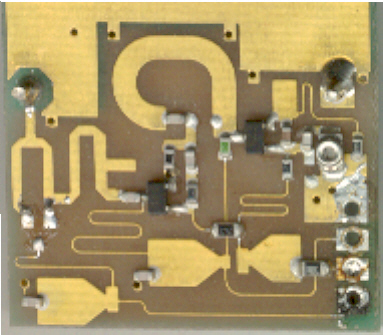

| X-band doppler sensor
| Homodyne Oscillator and mixer with integrated antennas for transmit and receive
(Tested)
|
5.7x3.7mm |
| N/A
| S band doppler sensor
| Homodyne Oscillator and mixer with integrated antennas for transmit and receive
(Tested)
|
5.7x3.7mm |
| N/A

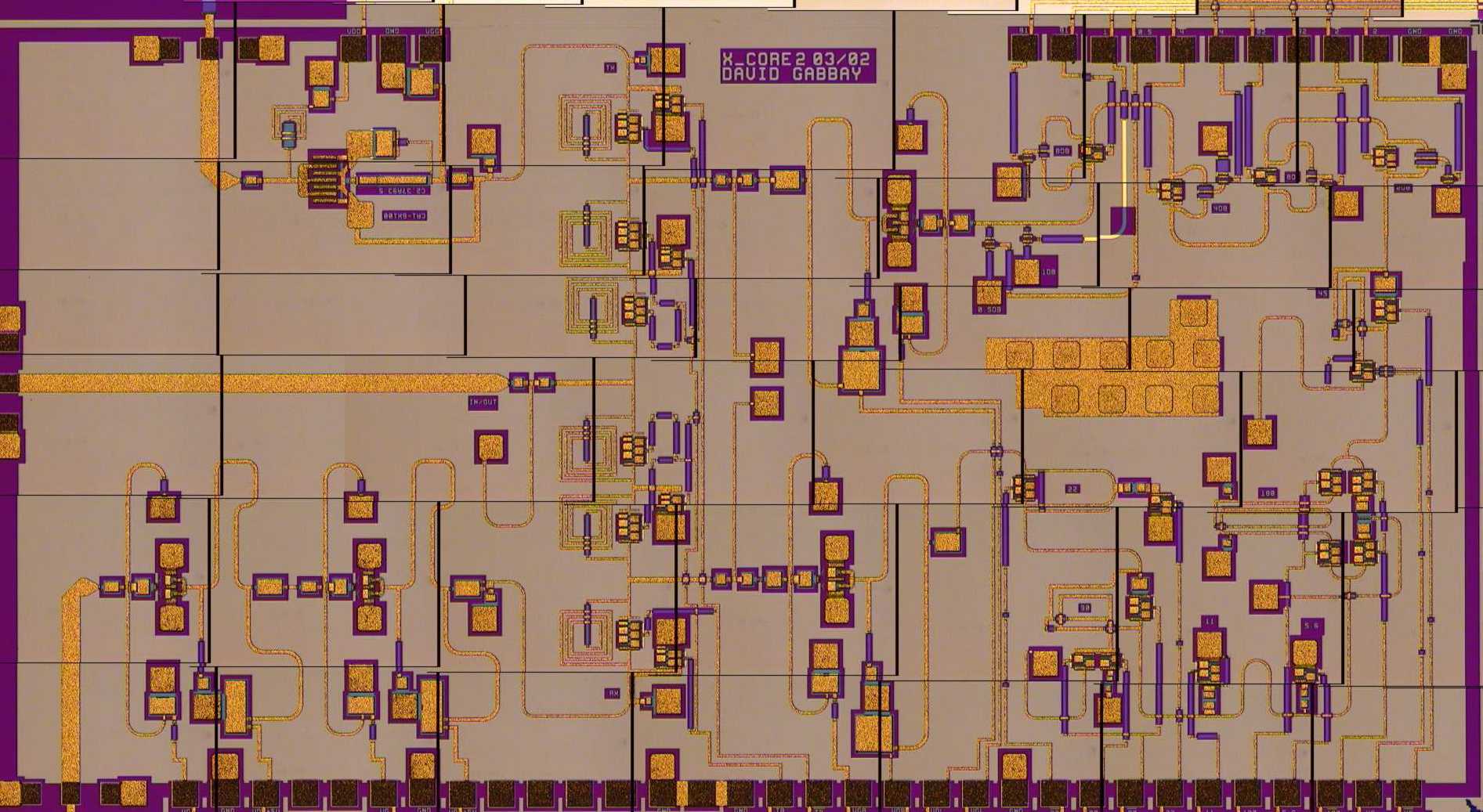

| X band Multi-function chip
| T/R switching, buffers, LNA, 6bit attenuator, 6bit phase shifter, TTL control inputs
(Tested)
|
5.7x3.7mm |
| N/A
| X band Multi-function chip
| T/R switching, buffers, LNA, 6bit attenuator, 6bit phase shifter LNA and Tx driver
(Tested)
|
5.7x3.4mm |
| N/A

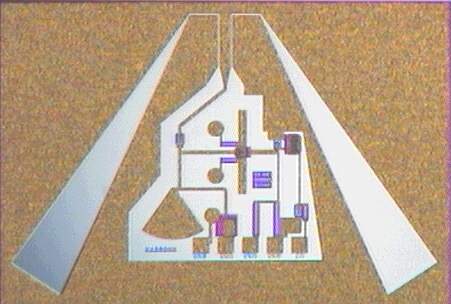

| Ka Doppler sensor transmitter with integrated antenna
| VCO30 - 32 GHz 10dBm, AM, FM modulation
(Tested)
|
2.2x1.6mm |
S-UDC0024Vxx
S-UDC0025Vxx

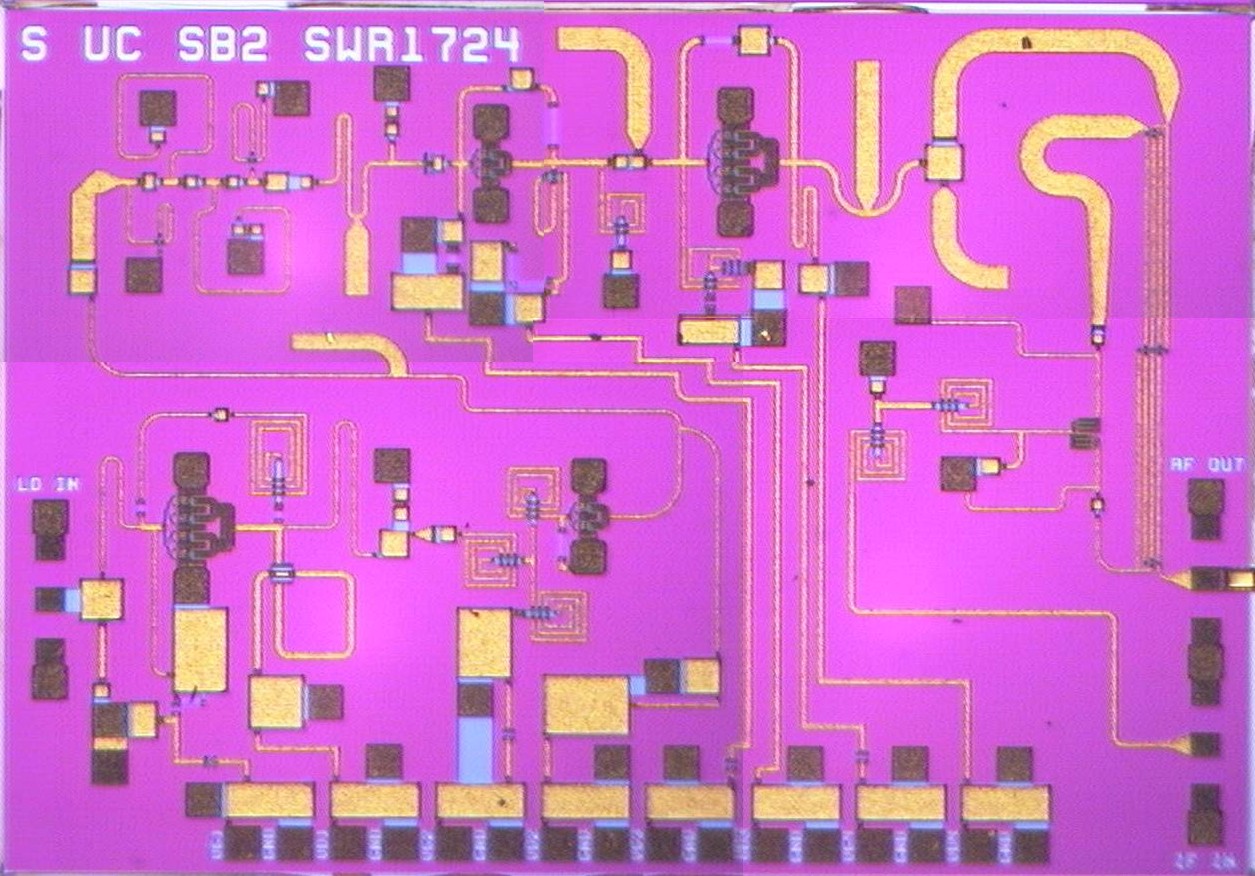

| Integrated wide band down converter
17-24.5GHz
| Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5GHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)
|
3.7x2.5mm |
S-UDC0018Vxx
S-UDC0019Vxx
| Integrated wide band up converter
17-24.5GHz
| Fundamental balanced diode mixer driven by an integrated frequency tripling LO chain. 10dB conversion loss, input LO 5.3-7.5FHz @ +3 - +5dBm, IF=0.9-2.2GHz, RF=17-24.5GHz.
(Tested)
|
3.7x2.5mm |

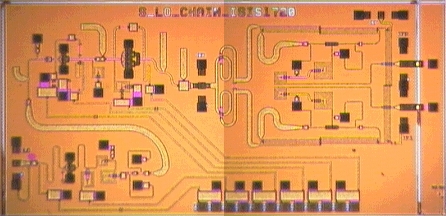

| S-UDC0028Vxx
| Application specific integrated down converter
17.7-20.7GHz
| An image reject fundamental diode mixer, driven by an integrated frequency doubling LO driver chain. Conversion loss better than 11dB including hybrid coupler, LO input 8.4-9.9GHz @ +5dBm
(Tested)
4.5x2.6mm |

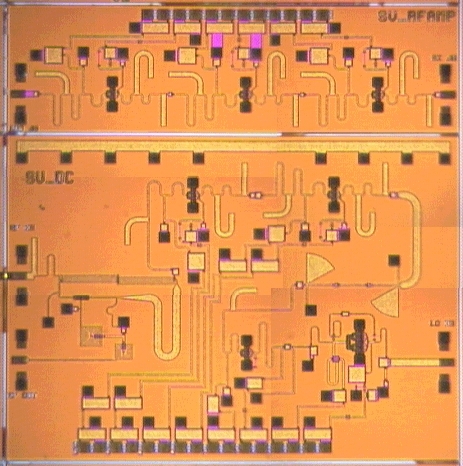

S-UC24-30
S-DC24-30
| Integrated wide band Up / Down Converter
24.5-30GHz
| A balance fundamental diode mixer driven by a frequency tripling LO chain. IF 0.9-3GHz RF 24.5-30GHz, LO 7.8-9GHz @ 0dBm, conversion loss 10dB. The integrated LNA has typical 4dB noise figure and 30dB gain.
(Tested)
|
4.5x2.4mm |
|
